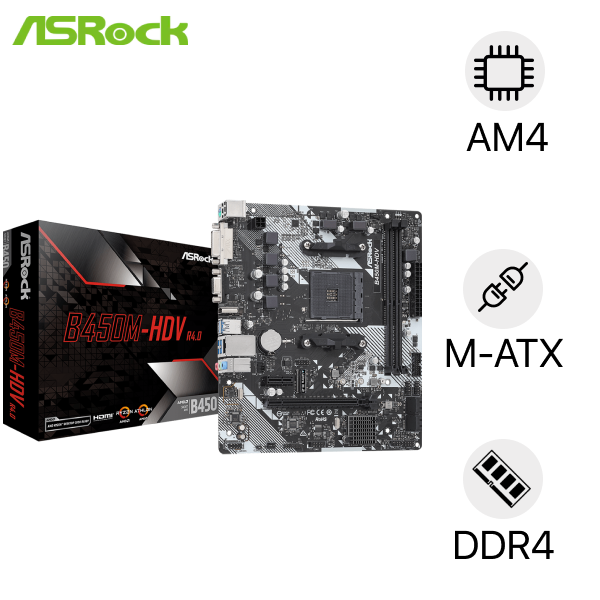

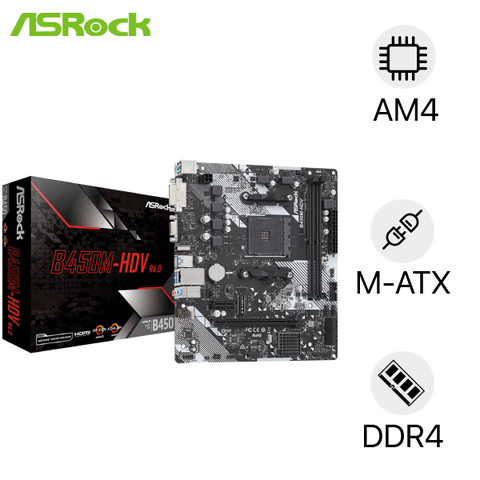

MAINBOARD ASROCK B450M-HDV R4.0 VAT

Tên Hãng

Asrock

Model

B450M-HDV R4.0

CPU hỗ trợ

AMD

Chipset

B450

RAM hỗ trợ

2 x DDR4 DIMM Slots, support up to 64GB DDR4 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory

Khe cắm mở rộng

AMD Ryzen series CPUs (Vermeer, Matisse, Cezanne, Renoir, Summit Ridge and Pinnacle Ridge)

- 1 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
AMD Ryzen series CPUs (Picasso, Raven Ridge)
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x8 mode)*
AMD Athlon series CPUs
- 1 x PCI Express 3.0 x16 Slot (PCIE2: x4 mode)*

- 1 x PCI Express 2.0 x1 Slot

Ổ cứng hỗ trợ

- 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
- 1 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s) (with Vermeer, Matisse, Cezanne, Renoir, Picasso, Summit Ridge, Raven Ridge and Pinnacle Ridge) or Gen3 x2 (16 Gb/s) (with Athlon series APU)

Cổng kết nối (Internal)

- 1 x COM Port Header
- 1 x TPM Header
- 1 x Chassis Intrusion and Speaker Header
- 1 x CPU Fan Connector (4-pin)*
- 2 x Chassis Fan Connectors (1 x 3-pin, 1 x 4-pin)**
- 1 x 24 pin ATX Power Connector
- 1 x 4 pin 12V Power Connector
- 1 x Front Panel Audio Connector
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
- 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

Cổng kết nối (Back Panel)

- 1 x PS/2 Mouse/Keyboard Port
- 1 x D-Sub Port
- 1 x DVI-D Port
- 1 x HDMI Port
- 2 x USB 2.0 Ports (Supports ESD Protection)
- 4 x USB 3.1 Gen1 Ports (Supports ESD Protection)
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone

LAN / Wireless

- PCIE x1 Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111H
- Supports Wake-On-LAN
- Supports Lightning/ESD Protection
- Supports Energy Efficient Ethernet 802.3az
- Supports PXE

Kích cỡ

Micro ATX Form Factor: 9.0-in x 7.9-in, 23.0 cm x 20.1 cm
