Brand |
|
|
Model |

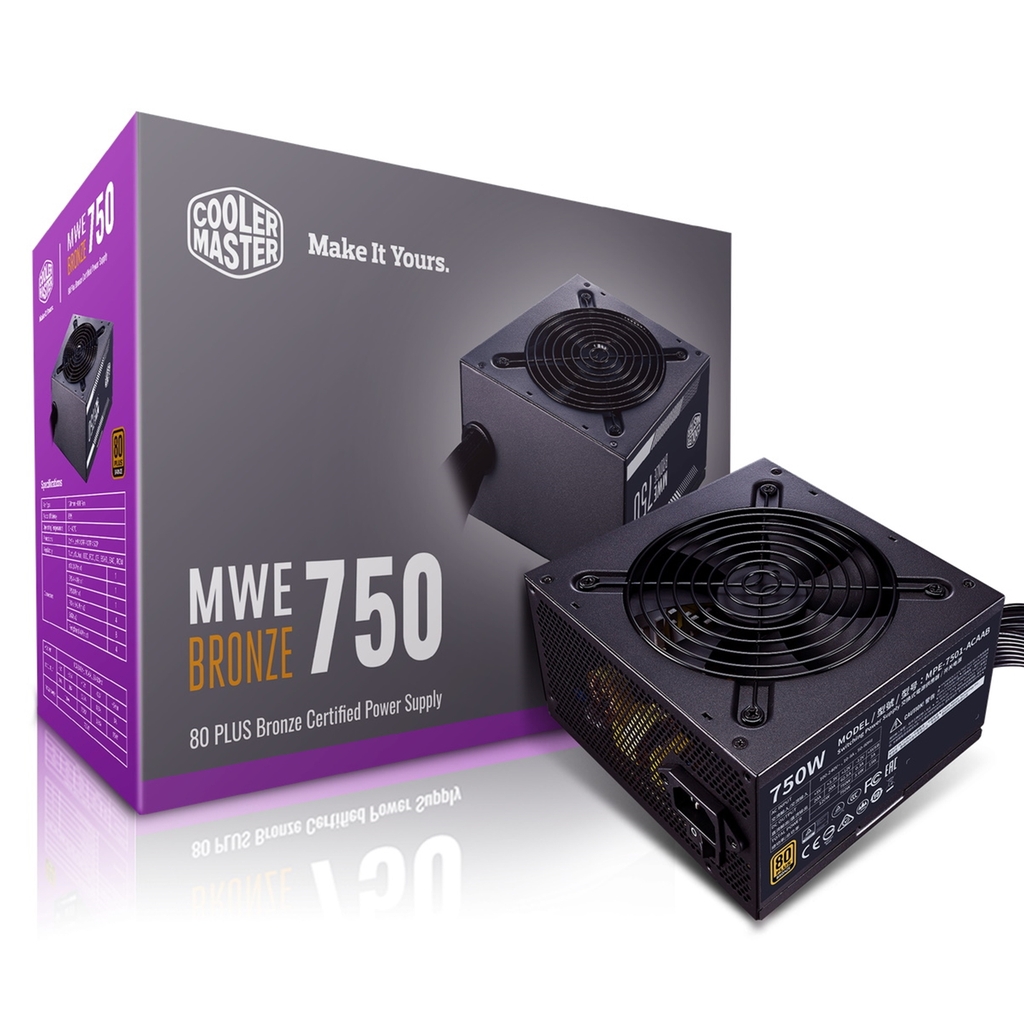

MPE-7501-ACABW-3B |
|
Series |
MWE Bronze Series |
|
ATX Version |
ATX 12V Ver. 3.1 |
|
PFC |
Active PFC |
|
Watts |
750W |
|
Input Voltage |
200-240V |
|
Input Current |
6A |
|
Input Frequency |
50-60Hz |
|
Fan Size |
120mm |
|
Fan Bearing |
HDB |
|
Efficiency |
>88% Typical Load |
|
80 PLUS Rating |
80 PLUS Bronze EU 230V |
|
Operating Temperature |
0-40°C |
|
Power Good Signal |
100 - 150 ms |
|
Waiting Time |
>16ms |
|
MTBF |
>100,000 Hours |
|
Protections |
UVP / OVP / OPP / OTP / SCP |
|
Regulatory |
TUV, CE, FCC, CCC, EAC, RCM, UKCA, RoHS2.0 / BIS, KC (based on region's request.) |
|
Connectors |
1 x ATX 24-PIN 2 x EPS 8 / 4+4 Pin 6 x SATA 3 x Peripheral 4 Pin 4 x PCI-e 6+2 Pin |
|
Category |
500 to 750W |
|
Modular |
Non Modular |
